Why Increasing Velocity Sometimes Reduces Heat Transfer

When a Common Rule Stops Working in Real Plants

In heat transfer discussions, one principle is repeated so often that it becomes almost unquestioned:

Higher velocity improves heat transfer.

And in many cases, this is true.

When fluid flows faster:

• turbulence increases
• boundary layers become thinner
• film resistance reduces
• heat transfer improves

Because of this, operators and engineers often assume:

• increasing flow will increase performance
• pushing velocity higher will solve thermal problems

But in real process plants, there are situations where increasing velocity does the opposite.

Instead of improving heat transfer, it can:

• reduce effective performance
• create instability
• increase resistance elsewhere
• lower overall duty

This article explains why increasing velocity does not always improve heat transfer, and why the relationship is more complex than it first appears.

Velocity Helps — But Only Up to a Point

At moderate levels, increasing velocity is beneficial.

It improves mixing.
It breaks up stagnant layers.
It increases film coefficient.

This is why many exchangers are designed to maintain minimum velocities.

But beyond a certain point, the benefits start competing with other effects.

And sometimes, those other effects become more important.

Reduced Residence Time Can Limit Heat Transfer

When fluid flows faster, it spends less time inside the exchanger.

This means:

• heat has less time to transfer
• temperature change per pass may reduce

In cases where:

• temperature difference is already small
• exchanger area is limited

higher velocity can reduce how much heat the fluid absorbs or releases.

So even though the film coefficient improves, total heat transfer may not increase.

Flow Maldistribution Becomes Worse at High Velocity

At higher velocities:

• fluid may not distribute evenly
• some tubes or paths may carry more flow
• others may receive less

This creates:

• uneven heat transfer
• underutilized surface area

So part of the exchanger becomes less effective.

The overall performance may drop even if local heat transfer improves in some areas.

Pressure Drop Increases Rapidly

Velocity and pressure drop are closely linked.

As velocity increases:

• friction increases
• pressure drop rises sharply

This creates two issues:

1. Pumps or compressors may not maintain the required flow.
2. Energy consumption increases.

In some cases, increased pressure drop reduces flow elsewhere in the system.

So trying to increase velocity in one exchanger may reduce flow stability across the network.

This can lower overall performance.

Vapor Formation Can Change the Heat Transfer Regime

In heating services, high velocity can sometimes cause:

• local pressure drop
• flashing or vapor formation

When vapor forms:

• heat transfer behavior changes
• film conditions become unstable
• effective contact between liquid and surface reduces

Instead of improving heat transfer, the process becomes less predictable.

Boiling Services Can Become Unstable

In boiling systems:

• higher velocity can disturb boiling patterns
• bubbles may form differently
• liquid contact with surface may reduce

In extreme cases:

• vapor blanketing can occur
• heat transfer becomes less efficient

So more flow does not always mean better boiling heat transfer.

Fouling Can Increase with Higher Velocity in Some Services

It is often said that higher velocity reduces fouling.

This is true in many cases because:

• deposits are less likely to settle
• shear removes buildup

But in some services:

• higher velocity brings more particles
• erosion-corrosion increases
• rough surfaces form
• deposits attach more easily

So over time, the exchanger may foul faster.

And faster fouling reduces heat transfer.

Pump and System Limits May Change Operating Conditions

When velocity is increased:

• pump loads increase
• energy use rises
• control valves adjust

These changes can affect:

• upstream temperature
• downstream pressure
• system balance

So the exchanger may not operate under the same conditions as before.

This indirect effect can reduce heat transfer even if velocity locally increases.

Thermal Boundary Layer May Already Be Optimized

At certain velocities, the boundary layer is already thin.

Further increasing velocity:

• gives only small improvement in film coefficient
• but increases pressure drop significantly

So the gain in heat transfer becomes very small compared to the cost and side effects.

This is where increasing velocity stops being beneficial.

Gas-Side Systems Are Especially Sensitive

In air coolers and gas exchangers:

• velocity increases require more fan power
• pressure drop increases rapidly
• distribution problems can appear

If air flow becomes uneven:

• some areas cool well
• others do not

This reduces effective area use.

So increasing velocity without improving distribution may lower overall performance.

Heat Transfer Depends on the Whole System

Velocity affects only one part of the heat transfer process.

But performance depends on:

• temperature driving force
• fouling resistance
• distribution quality
• surface condition
• residence time

If any of these become limiting, increasing velocity alone cannot solve the problem.

And sometimes, it makes other limitations more severe.

Why Performance Improvements Are Sometimes Temporary

When velocity is increased, plants may see:

• short-term improvement
• better outlet temperatures
• improved heat pickup

But after some time:

• pressure drop issues appear
• fouling behavior changes
• system balance shifts

So the benefit may not last.

This is why velocity adjustments sometimes give temporary relief but not long-term solutions.

Owner Perspective: Energy vs Benefit Balance

Higher velocity means:

• higher pumping cost
• more power consumption
• higher wear and tear

If heat transfer improvement is small, the extra energy cost may not justify the change.

So the best operating point is often a balance:

• enough velocity for good heat transfer
• not so high that other problems begin.

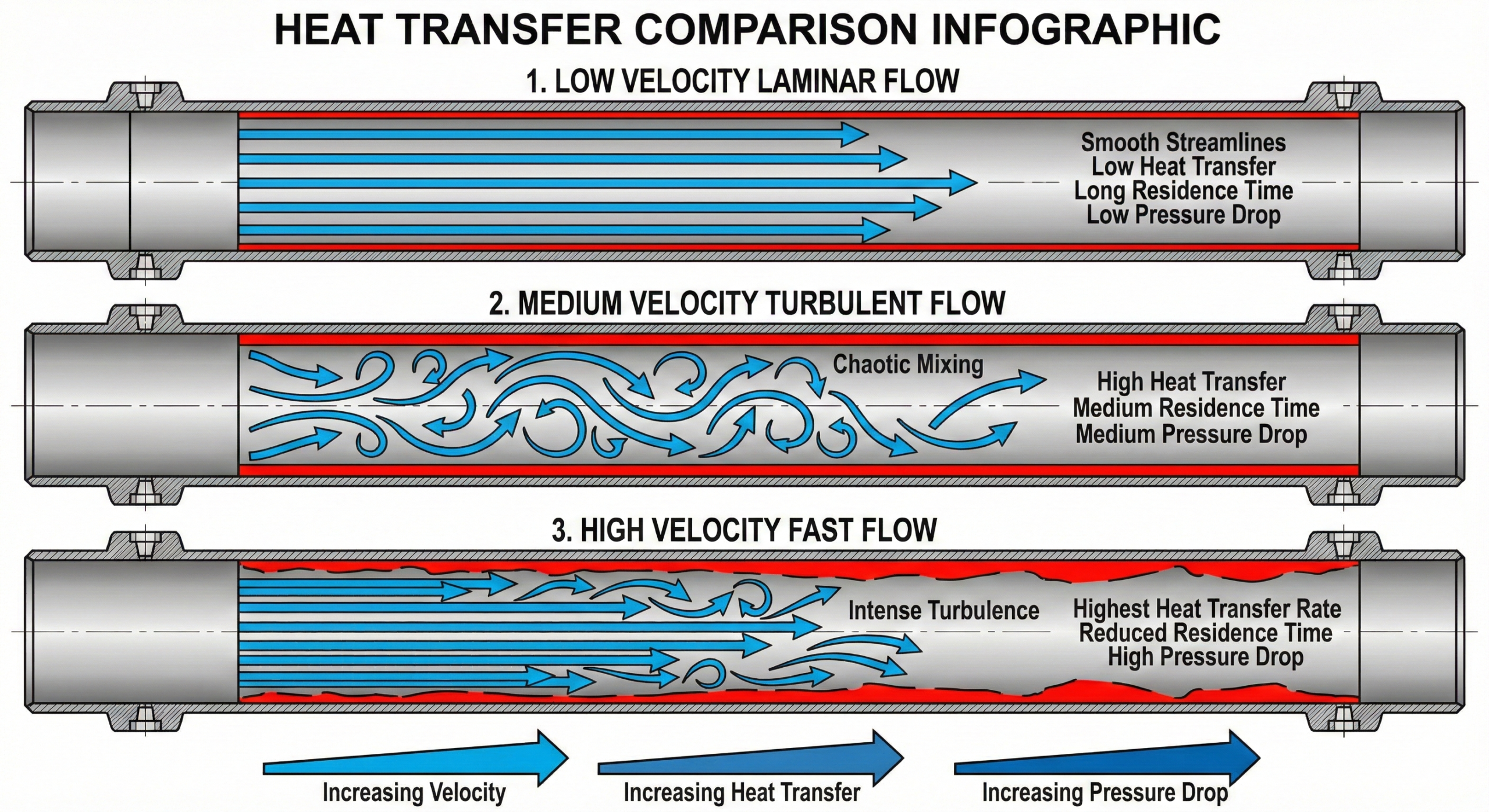

A Simple Way to Understand the Trade-Off

Imagine water flowing through a pipe to pick up heat.

If it flows too slowly:

• it does not mix well
• heat transfer is weak

If it flows too fast:

• it passes quickly
• has less time to absorb heat
• pressure drop becomes large

So somewhere in between lies the best performance point.

That is where most exchangers are designed to operate.

Final Perspective

Velocity is one of the strongest drivers of convection heat transfer.

But it is not a magic solution.

At moderate levels, it improves performance.
At very high levels, it can create new limitations.

Heat transfer depends on:

• turbulence
• residence time
• distribution
• pressure balance
• system stability

So the best results come not from pushing velocity to the maximum, but from operating within a balanced range.

Understanding why increasing velocity sometimes reduces heat transfer helps prevent overcorrection and supports smarter operating decisions.
